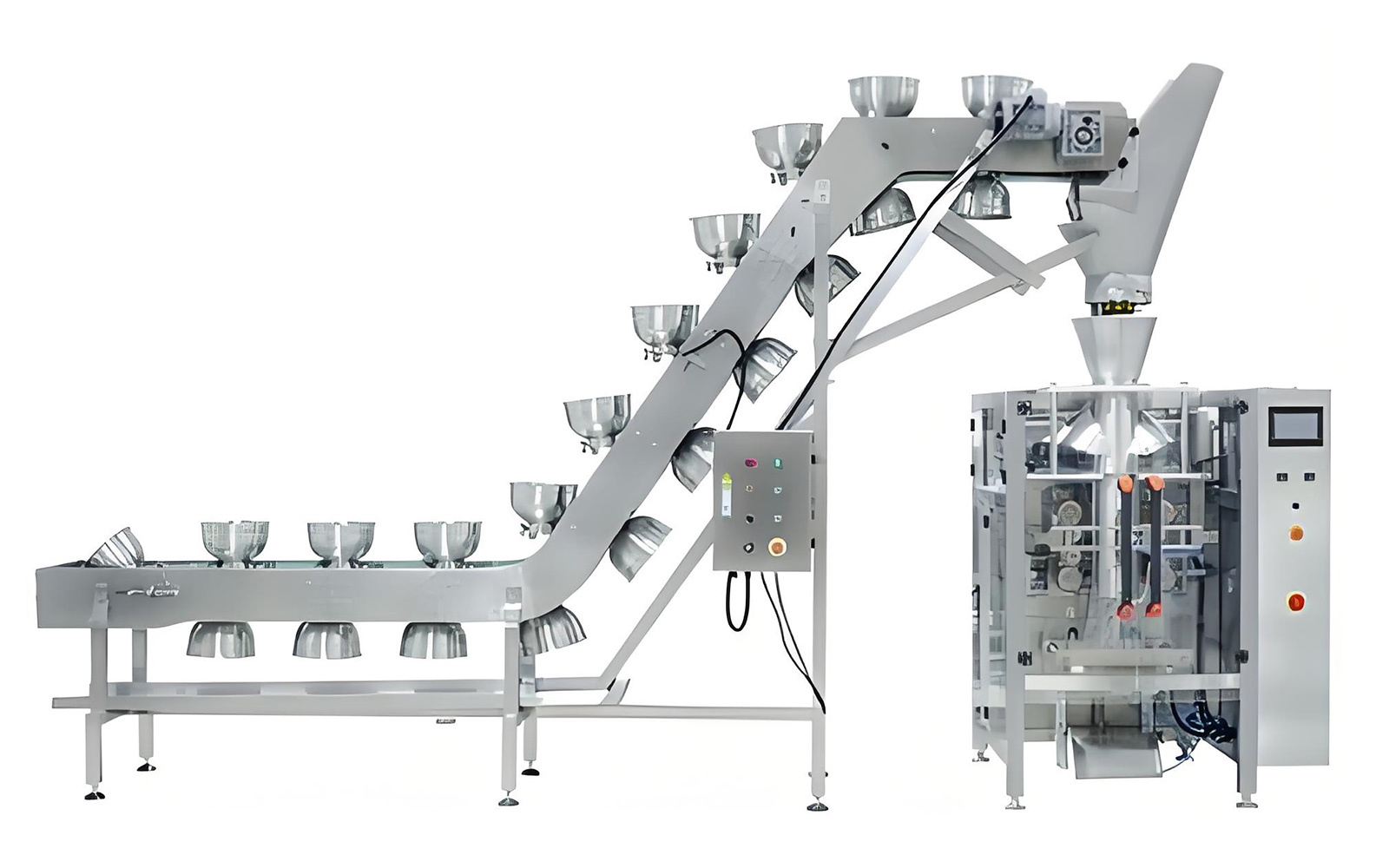

HXV-420/520/620/730 Vertical Form Fill and Seal Packaging Machine
Vertical Form Fill Seal (VFFS) Machine for Food Packaging
1.Dual-Language Intuitive Control: Equipped with a Weilun Chinese-English touch screen, ensuring easy operation for global teams without language barriers.
2.Stable Non-Stop Operation: Powered by a Mitsubishi PLC control system, enabling stable performance and on-the-fly parameter adjustments without halting production.
3.Efficient Product Changeovers: Stores up to 10 sets of parameters, supporting quick and accurate switching between different product SKUs — ideal for multi-variety production lines.
4.Precision Film Handling: Adopts Siemens servo motor for film pulling, delivering exceptional positioning accuracy to ensure consistent bag dimensions.
Description
HUAXIAO Vertical Form Fill and Seal Packaging Machines – Food & Non-Food Solutions
VFFS Machine – Automatic Vertical Form Fill Seal for Food/Powder | CE Certified
The HXV-420/520/620/730 fully automatic VFFS machine (vertical form fill seal machine) features a Mitsubishi PLC control system, intuitive HMI touch screen, and servo film pulling for precise bag sizing. Constructed with over 95% 304 stainless steel, it meets food-grade hygiene standards. The 10mm thick film transport frame and automatic deviation correction ensure stable, low-downtime operation—ideal for global manufacturers packaging granules, powders, or liquids. CE-compliant for international use.
Technical Specifications
| Model | HXV-420 | HXV-520 | HXV-620 | HXV-730 |
|---|---|---|---|---|
| Packaging Speed | 30-60 bags/min | 40-80 bags/min | 60-100 bags/min | 80-120 bags/min |
| Bag Size Range (L×W) | 50-180×30-120mm | 60-220×40-150mm | 80-280×50-180mm | 100-320×60-220mm |
| Film Width | Max 240mm | Max 300mm | Max 380mm | Max 450mm |
| Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Control System | Mitsubishi PLC + HMI touch screen | Mitsubishi PLC + HMI touch screen | Mitsubishi PLC + HMI touch screen | Mitsubishi PLC + HMI touch screen |
| Film Pulling System | Servo motor | Servo motor | Servo motor | Servo motor |

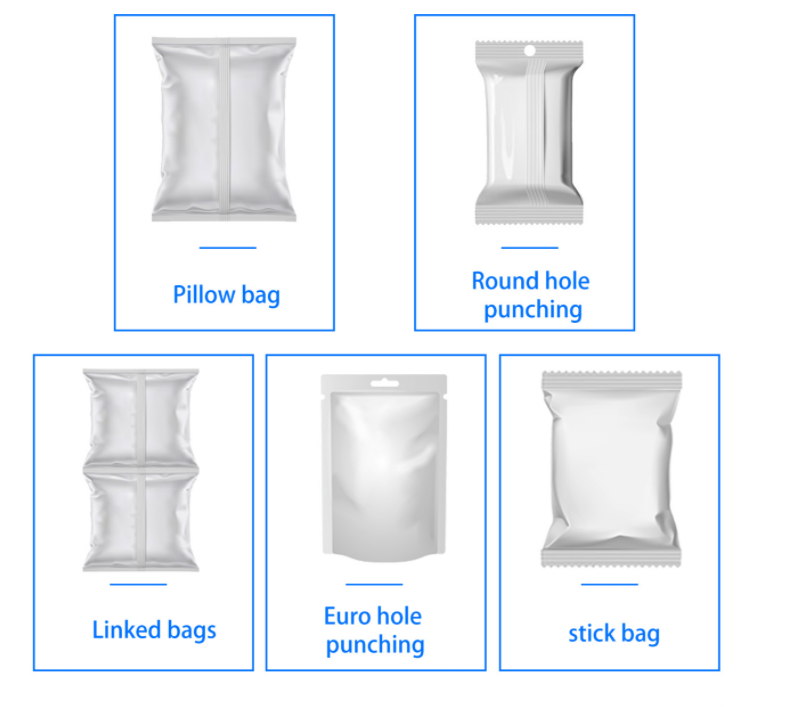

| Type of bag | Back sealing bag | Back sealing bag | Back sealing bag | Back sealing bag |
| Power Supply | Single phase 220v±5% 50~60HZ 2.2~3.9KW | Single phase 220v±5% 50~60HZ 2.2~3.9KW | Single phase 220v±5% 50~60HZ 2.2~3.9KW | Single phase 220v±5% 50~60HZ 2.2~3.9KW |
| gas consumption | 0.8Mps，0.35m³/min | 0.8Mps，0.35m³/min | 0.8Mps，0.35m³/min | 0.8Mps，0.35m³/min |
